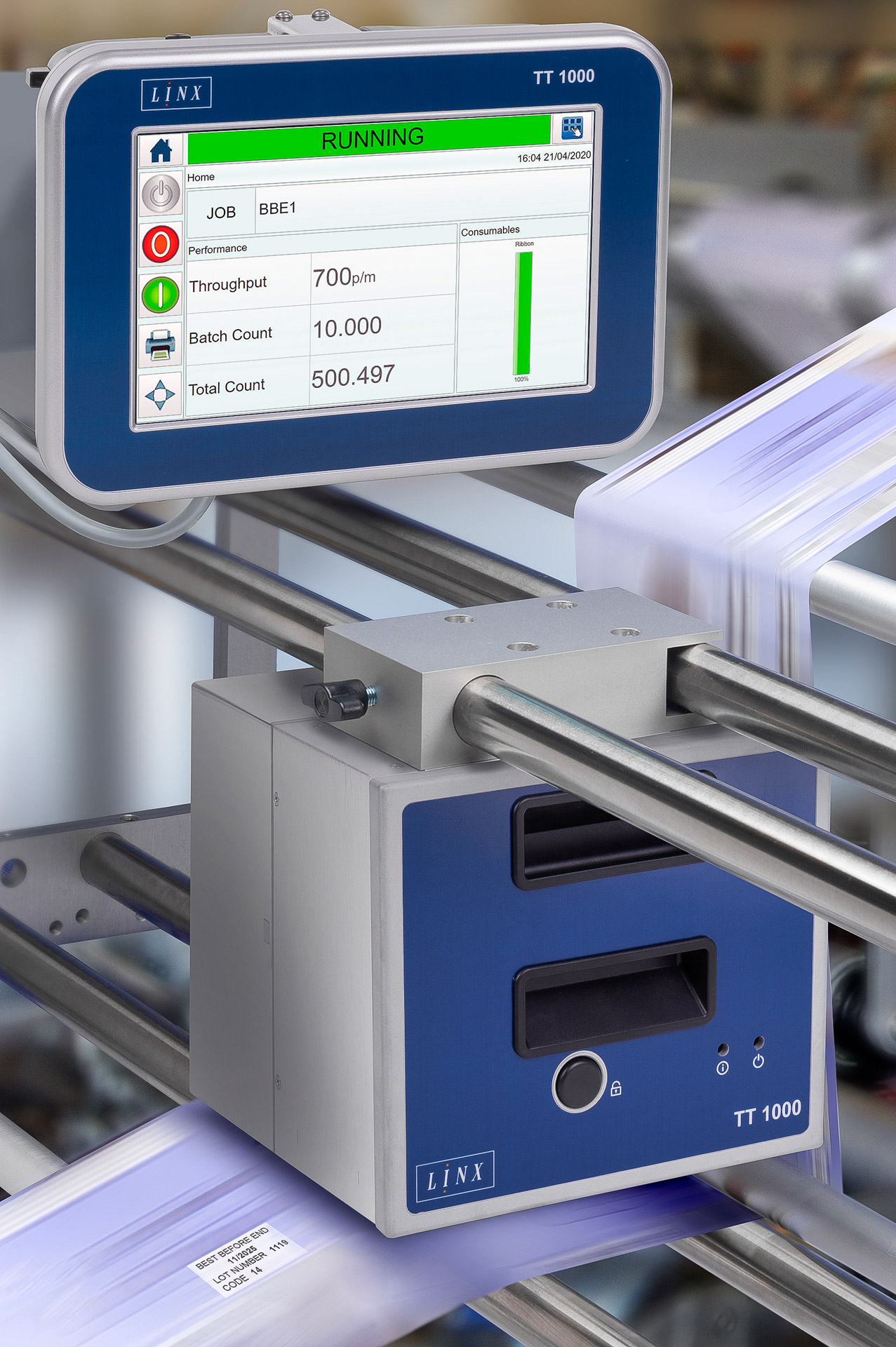

Linx TT 1000 Printer

Ease of Use

• Print quality Maintained with electronic pressure control

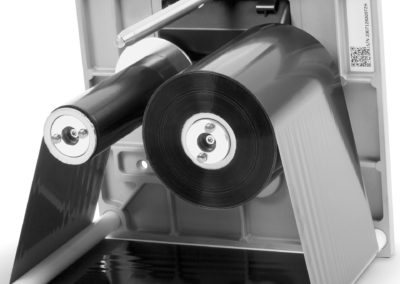

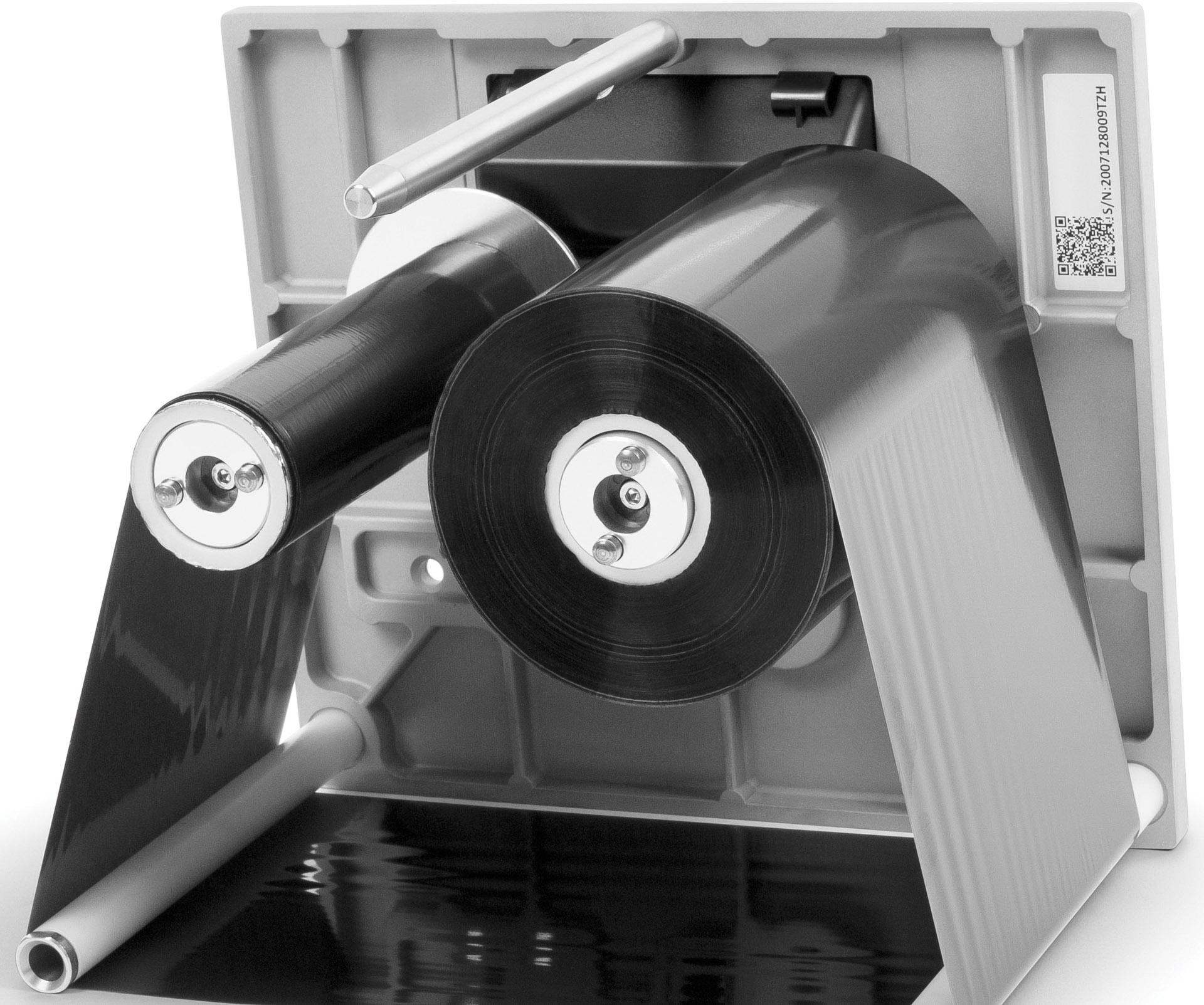

• Easy ribbon replacements with cassette designed to minimize errors

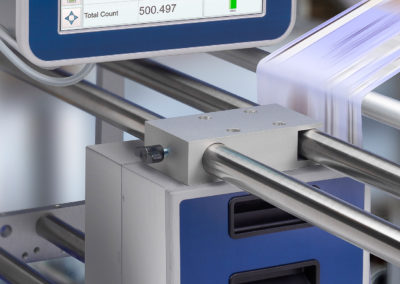

• Easy printer operation with intuitive graphic user interface

Performance

• Intermittent and continuous mode in the same printer
• Printhead characteristics: 53mm, 300dpi, 12 dots/mm; 107mm, 300dpi, 12 dots/mm Print area – intermittent motion mode: Up to 53mm (W) x 75mm (L) (53mm) Up to 107mm (W) x 75mm (L) (107mm
• Print area – continuous motion mode: Up to 53mm (W) x 300mm (L) (53mm) Up to 107mm (W) x 300mm (L) (107mm)
• Maximum throughput*: Up to 700 prints per minute (53mm) Up to 450 prints per minute (107mm)
• Ribbon width: 20mm – 55mm (53mm) 55mm – 110mm (107mm)
• Maximum ribbon length: 1200m Ribbon gap between messages: 0.5mm nominal Print speed* -intermittent motion mode: 10mm/sec -800mm/sec (53mm) 10mm/sec -600mm/sec (107mm)
• Print speed* -continuous motion mode: 1mm/sec -1000mm/sec (53mm) 1mm/sec -1000mm/sec (107mm)
• Cable length between printer and power supply unit: 3 metres (5m option)
